Load Master

This is a device to be used with a motor analyzer to measure how your motor would work in real world conditions (like when its on the track).

Please note that we recommend using the same turn slave motor or the next higher turn (if wanting to test a 21.5 motor use a 25.5 or 21.5 motor). This is only rated for use with 25.5, 21.5, 17.5 and 13.5 motors, it is not recommended for use with any lower turn motors. If you would like to use a lower turn motor with these please message us.

An additional note. Some 13.5 in operation with the tunalyzer and the load master, causes too many amps to be pulled and cannot be used together. We have not found this issue with the motolyser.

Features & Specifications:

Plugs into any analyzer

Color coded wires to identify A, B and C poles

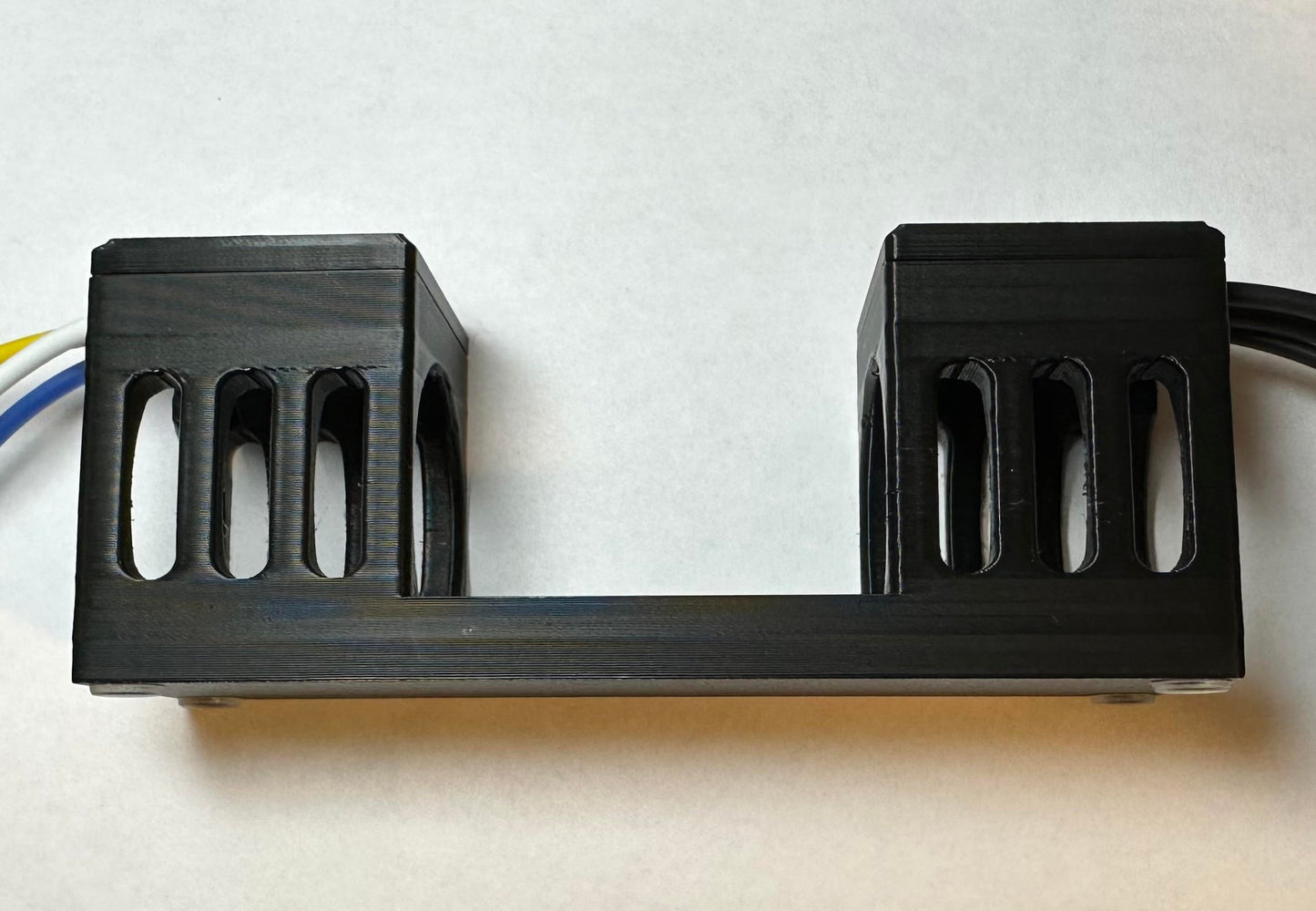

Vented sides

10" motor wires and 275mm sensor wire included

Resistor bank and coupler

Rated for up to 120* Fahreinheit

Handcrafted in the USA!

Comes with protective case

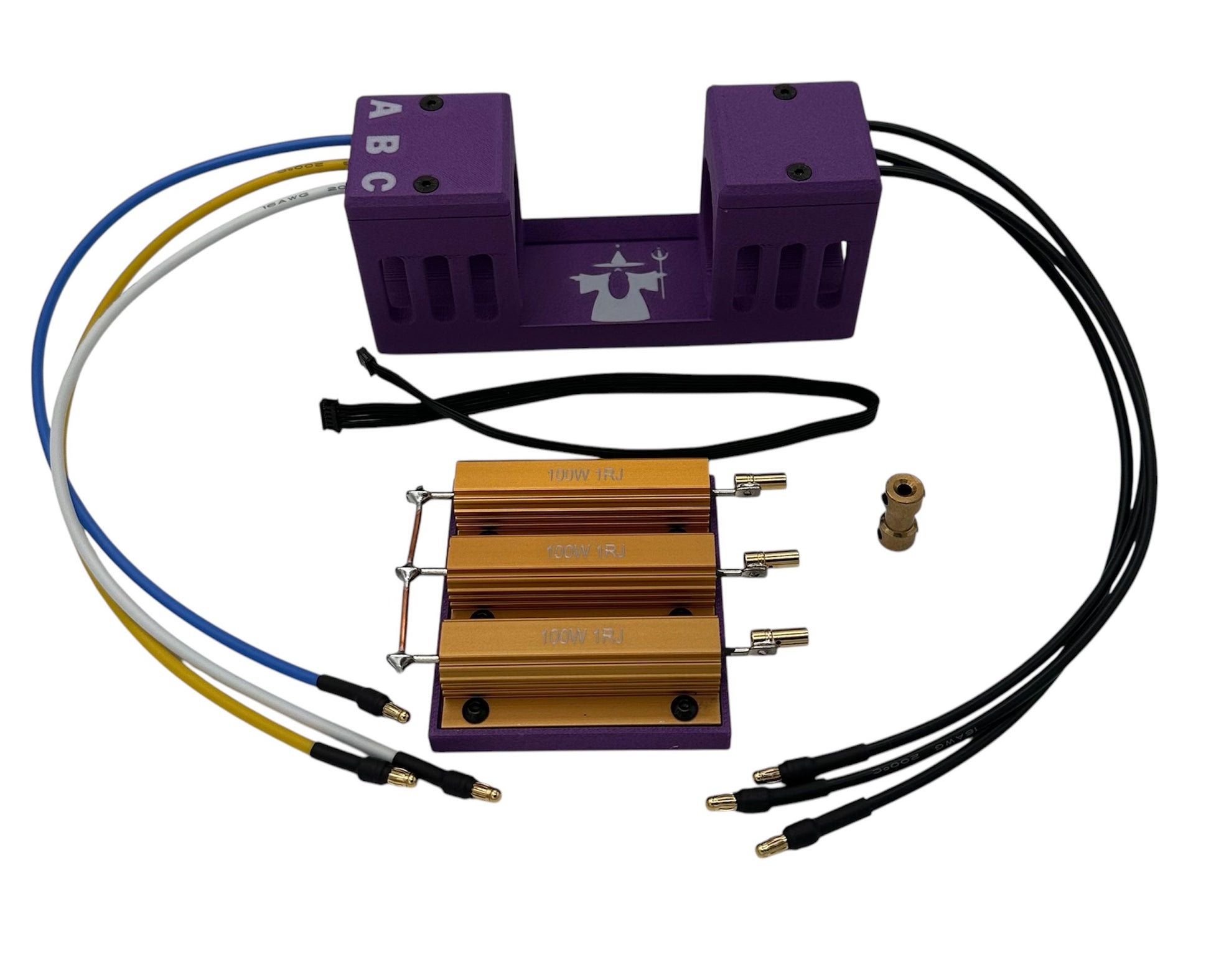

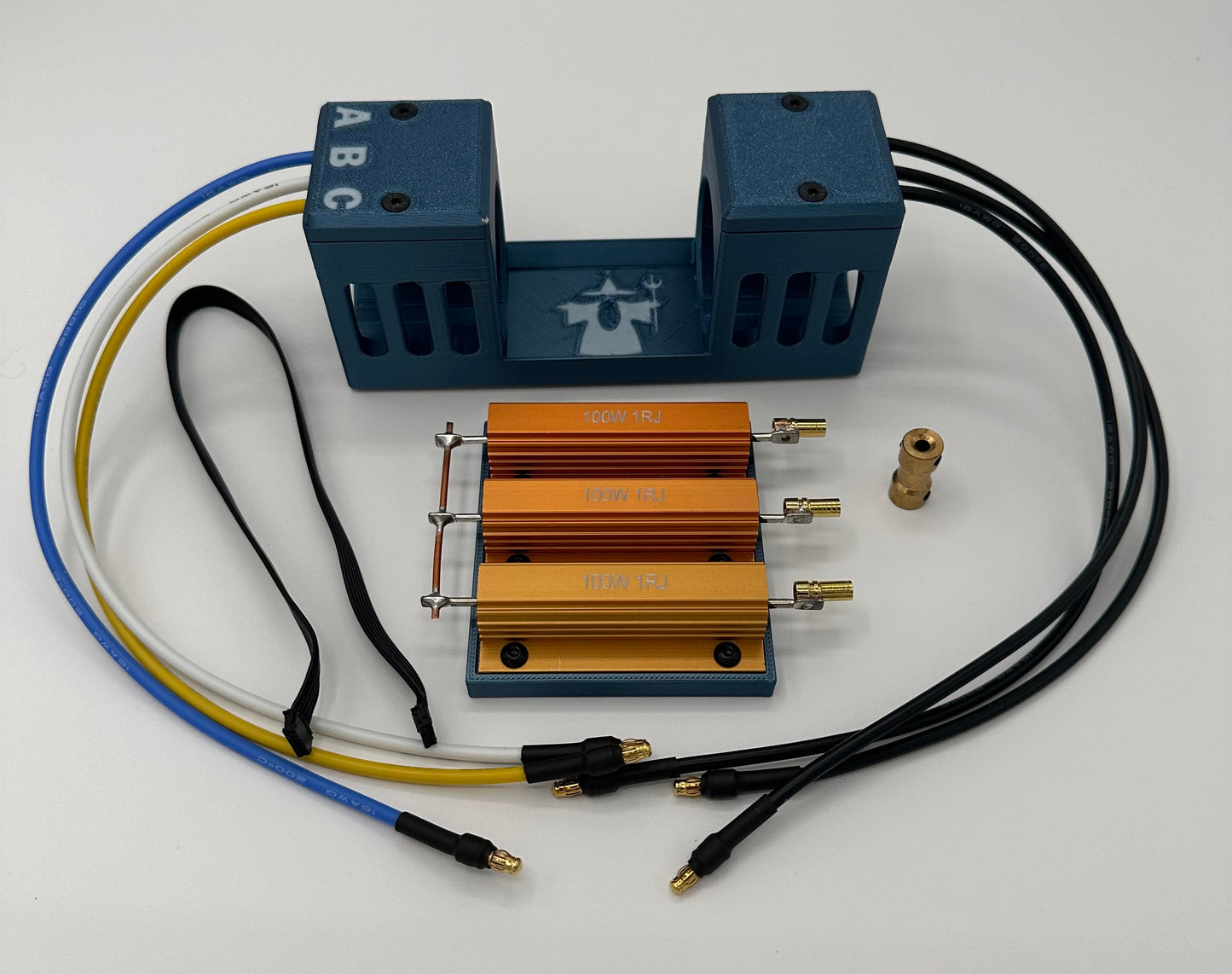

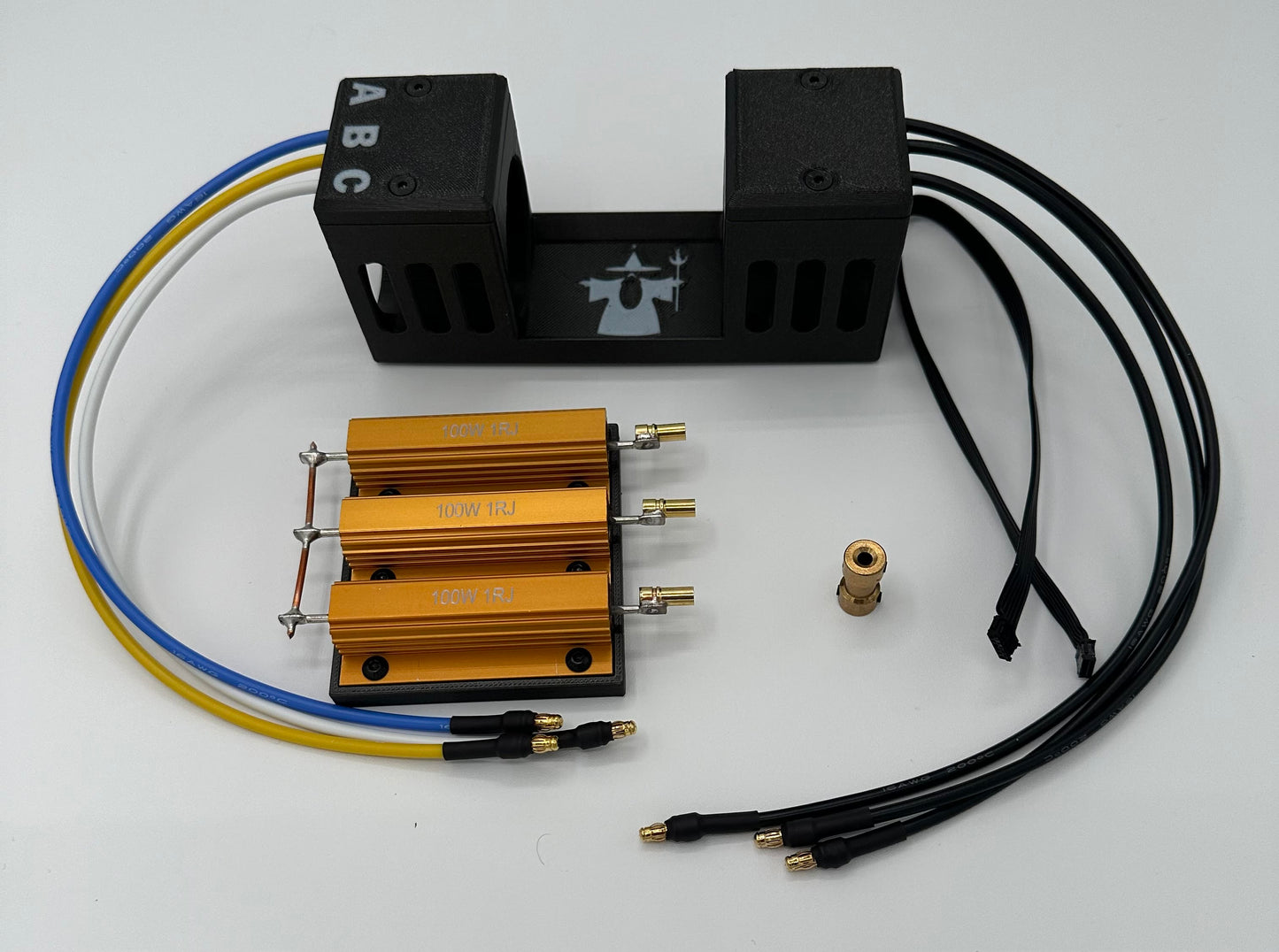

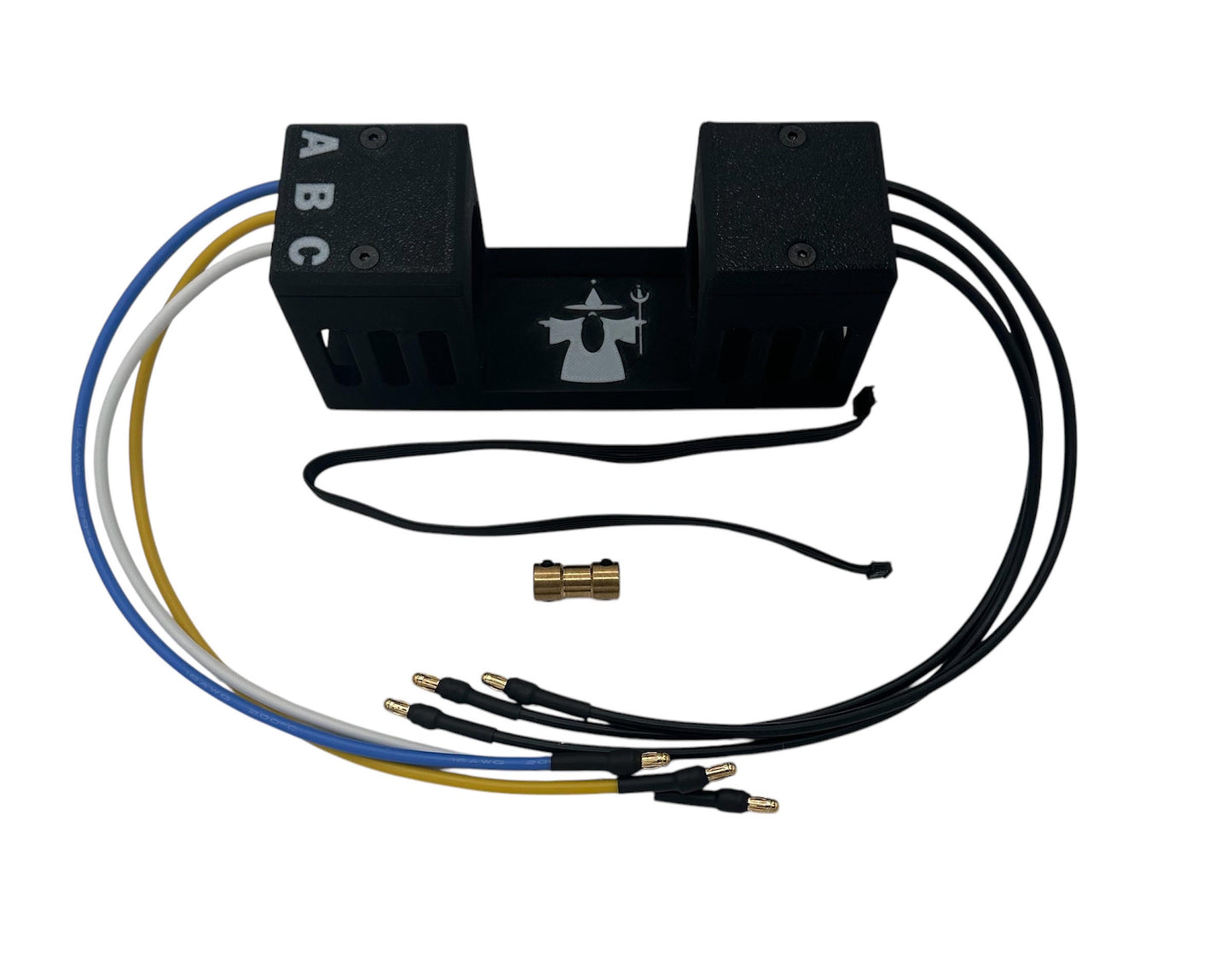

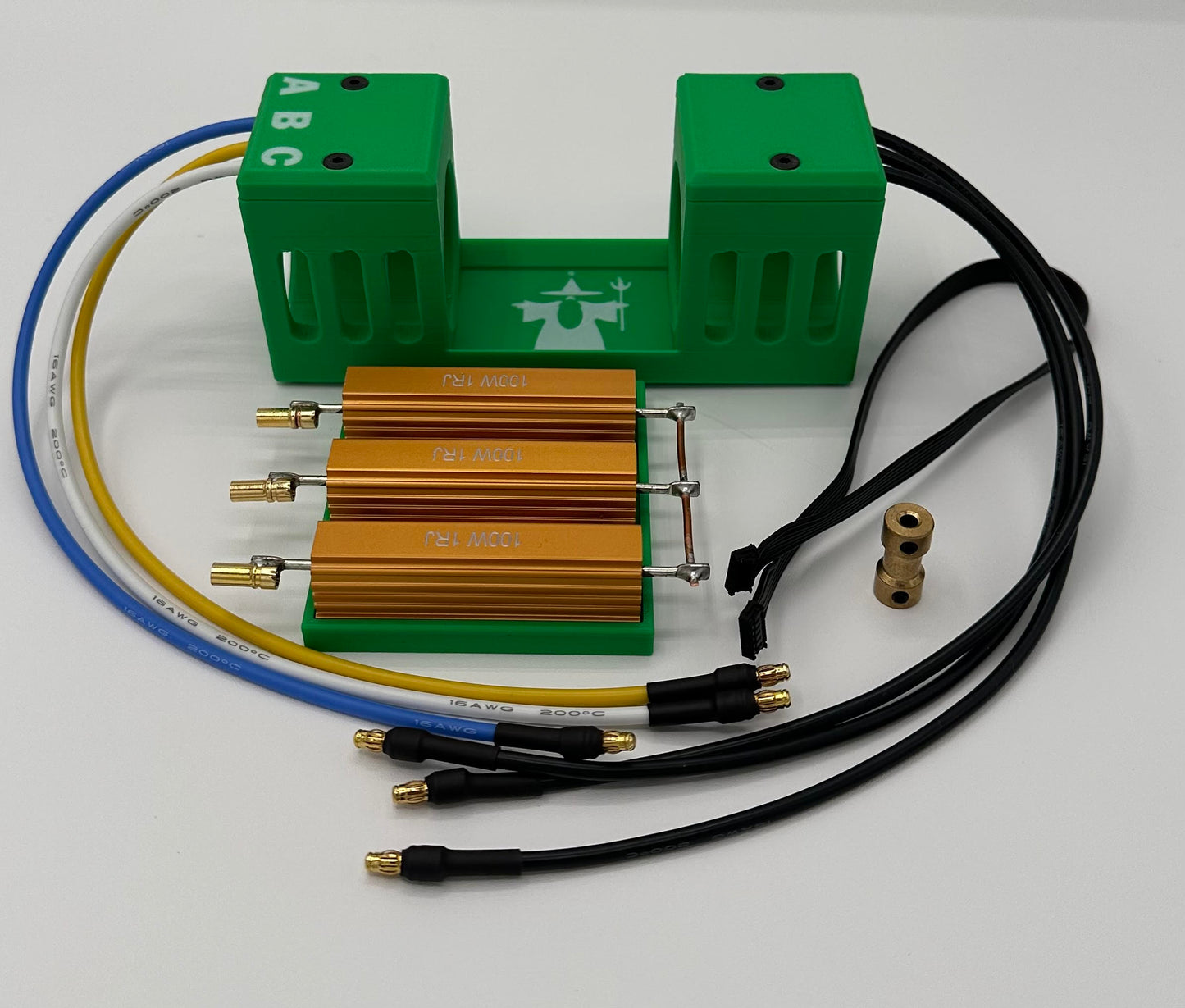

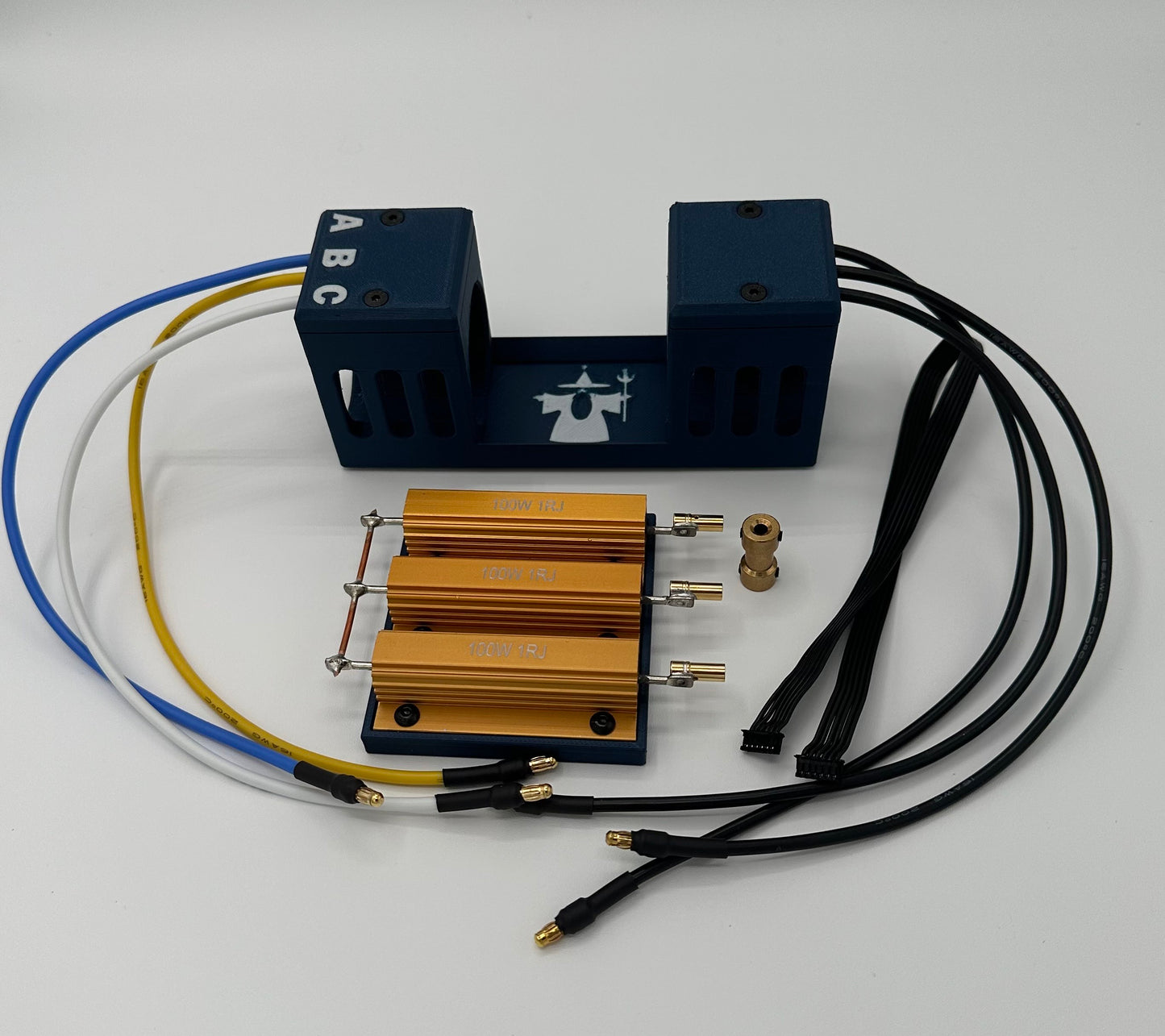

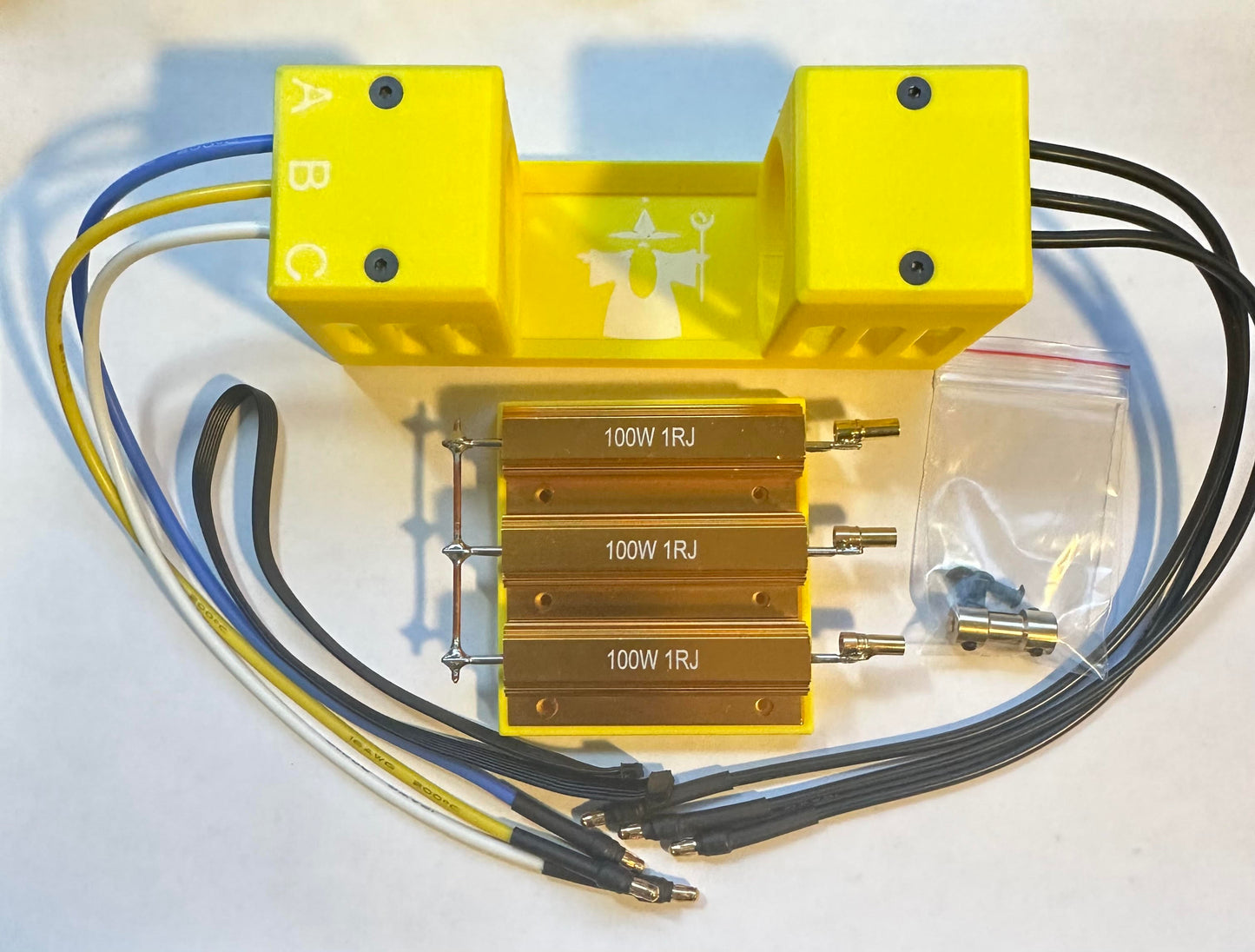

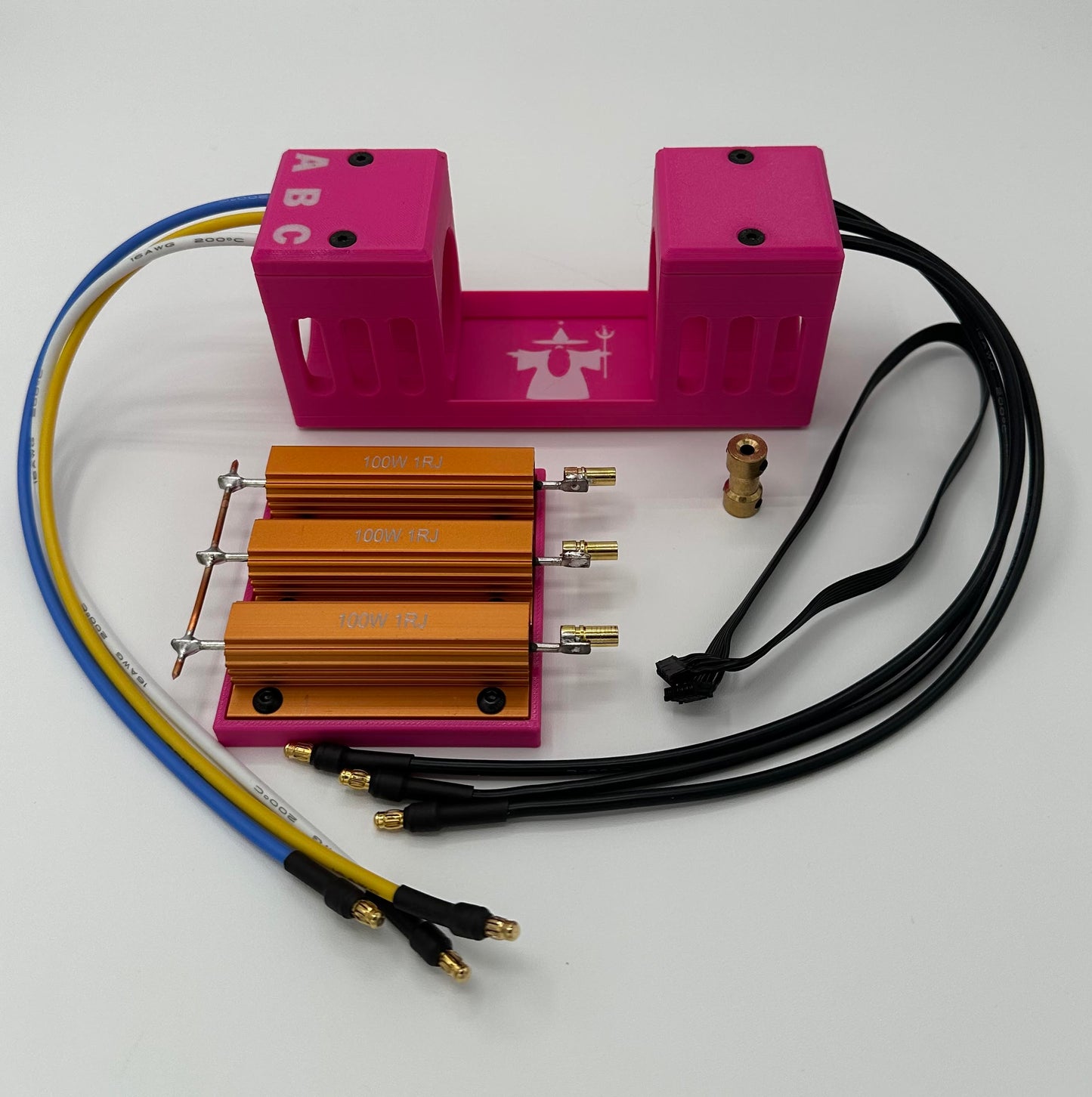

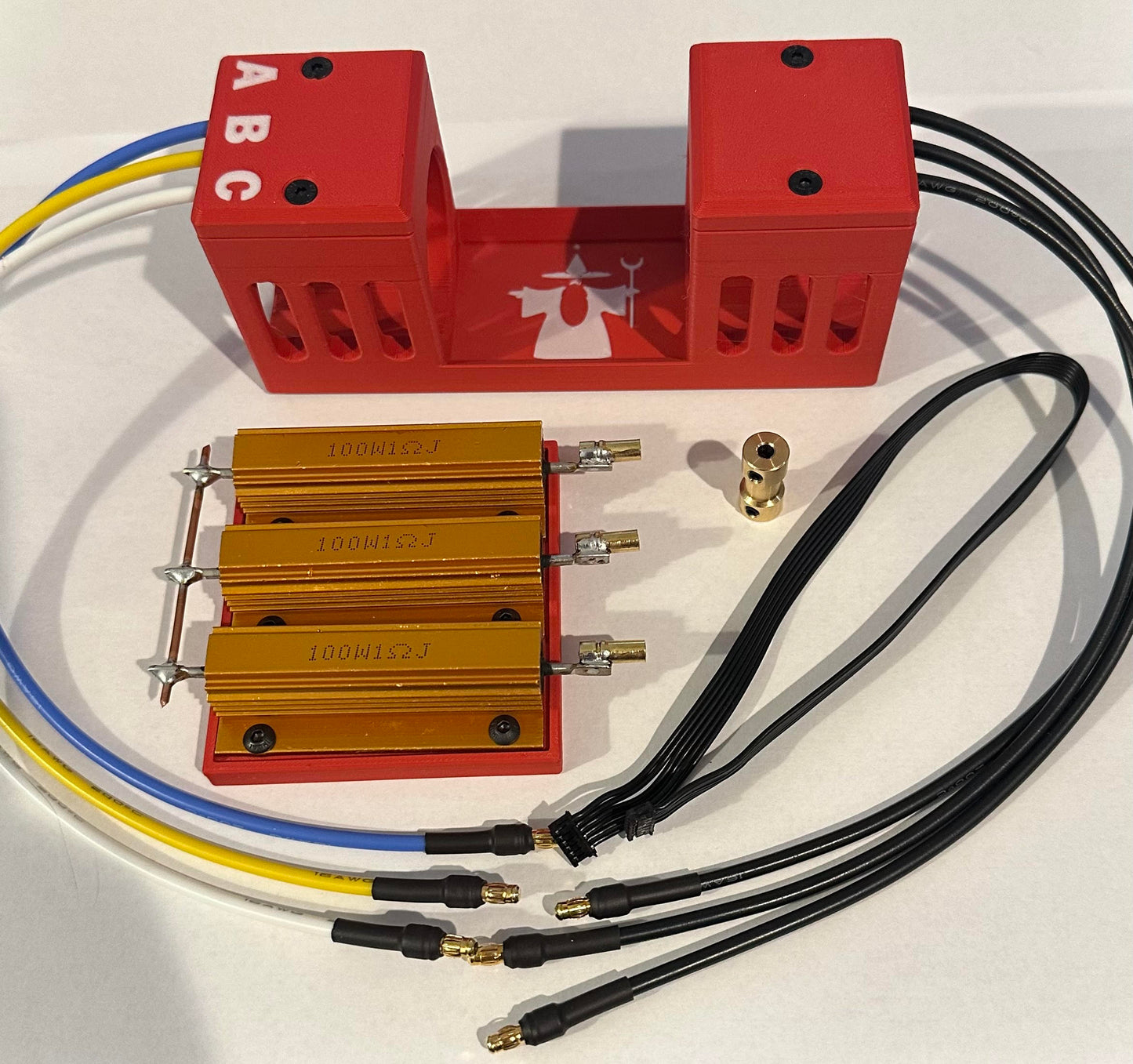

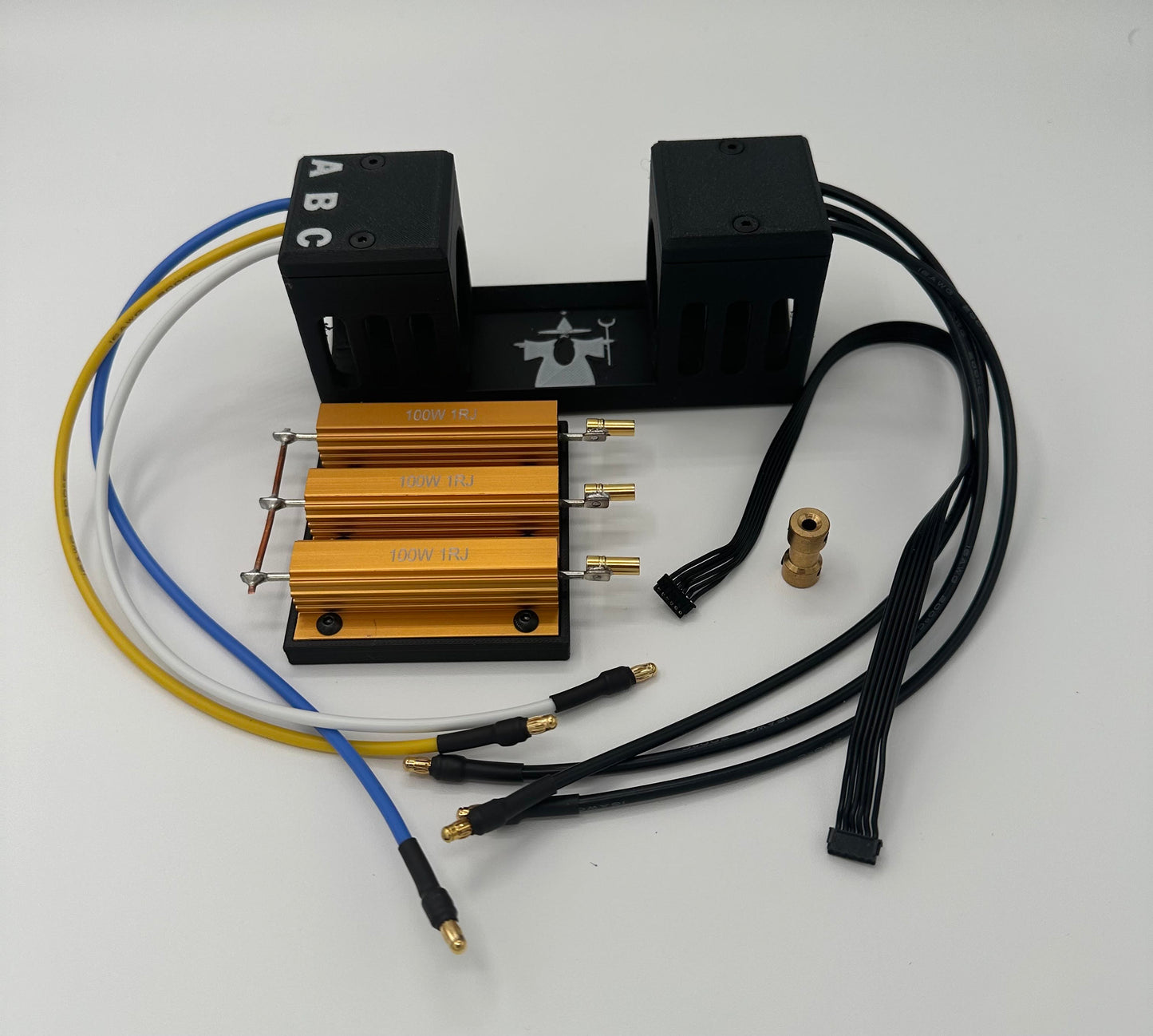

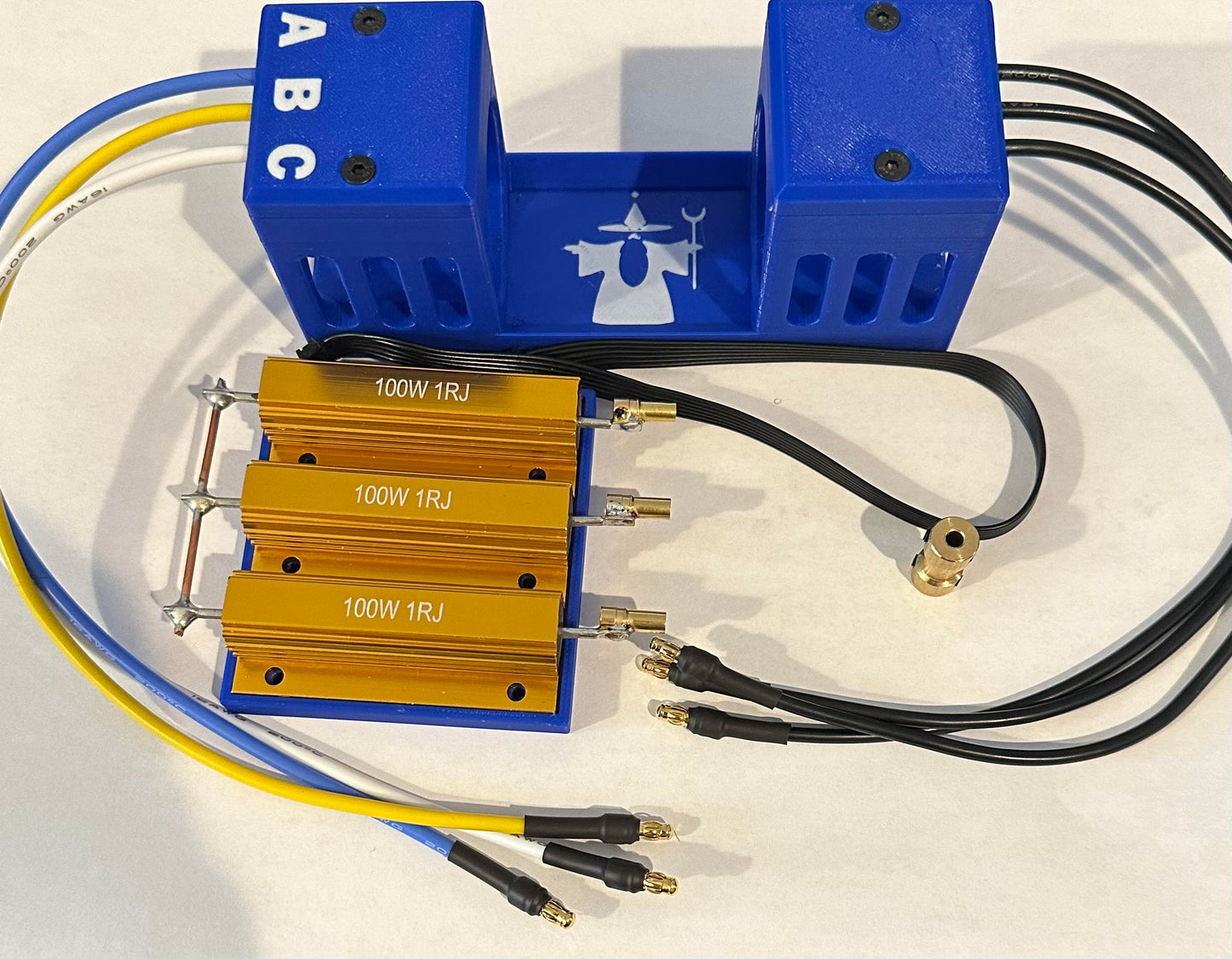

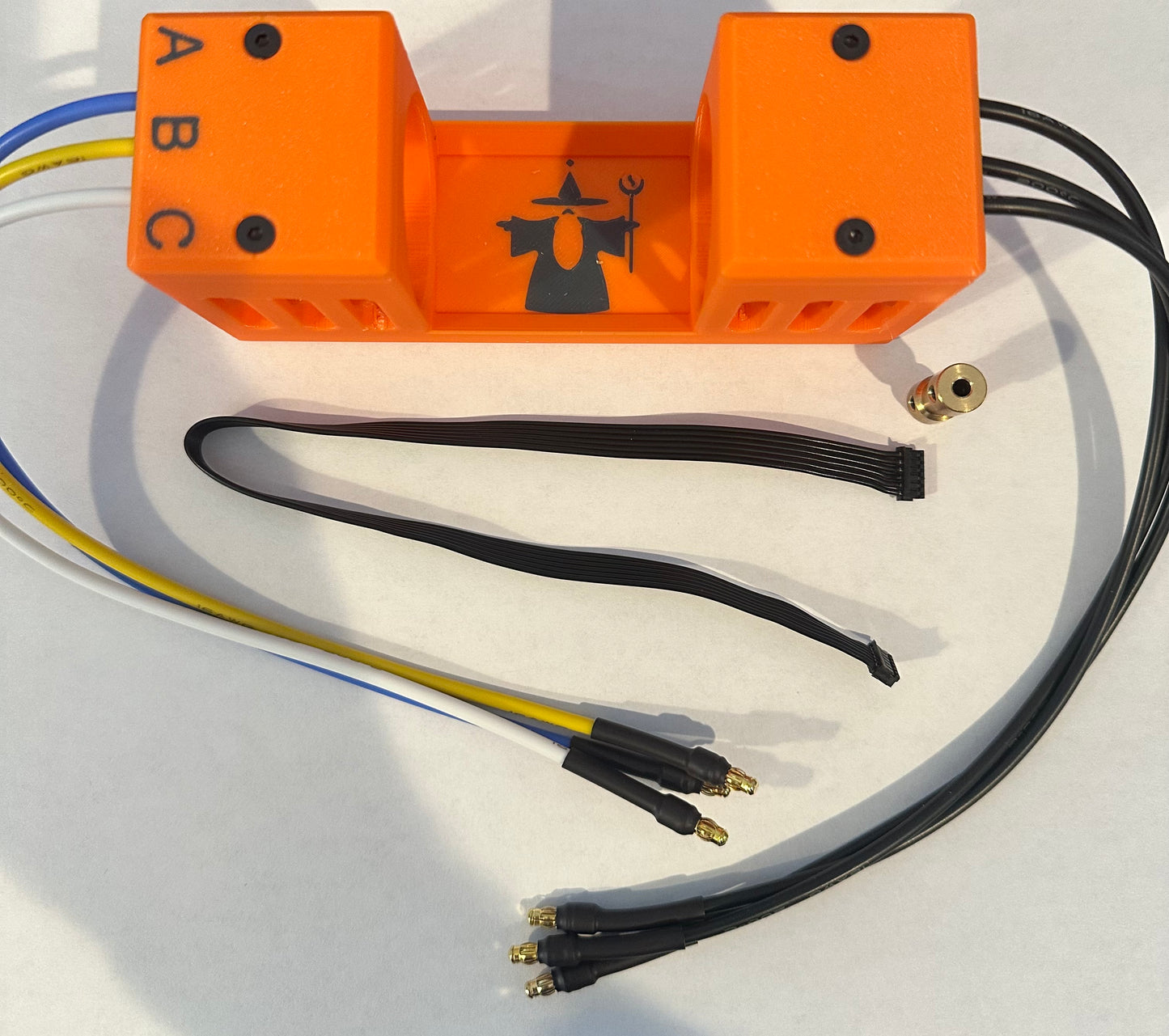

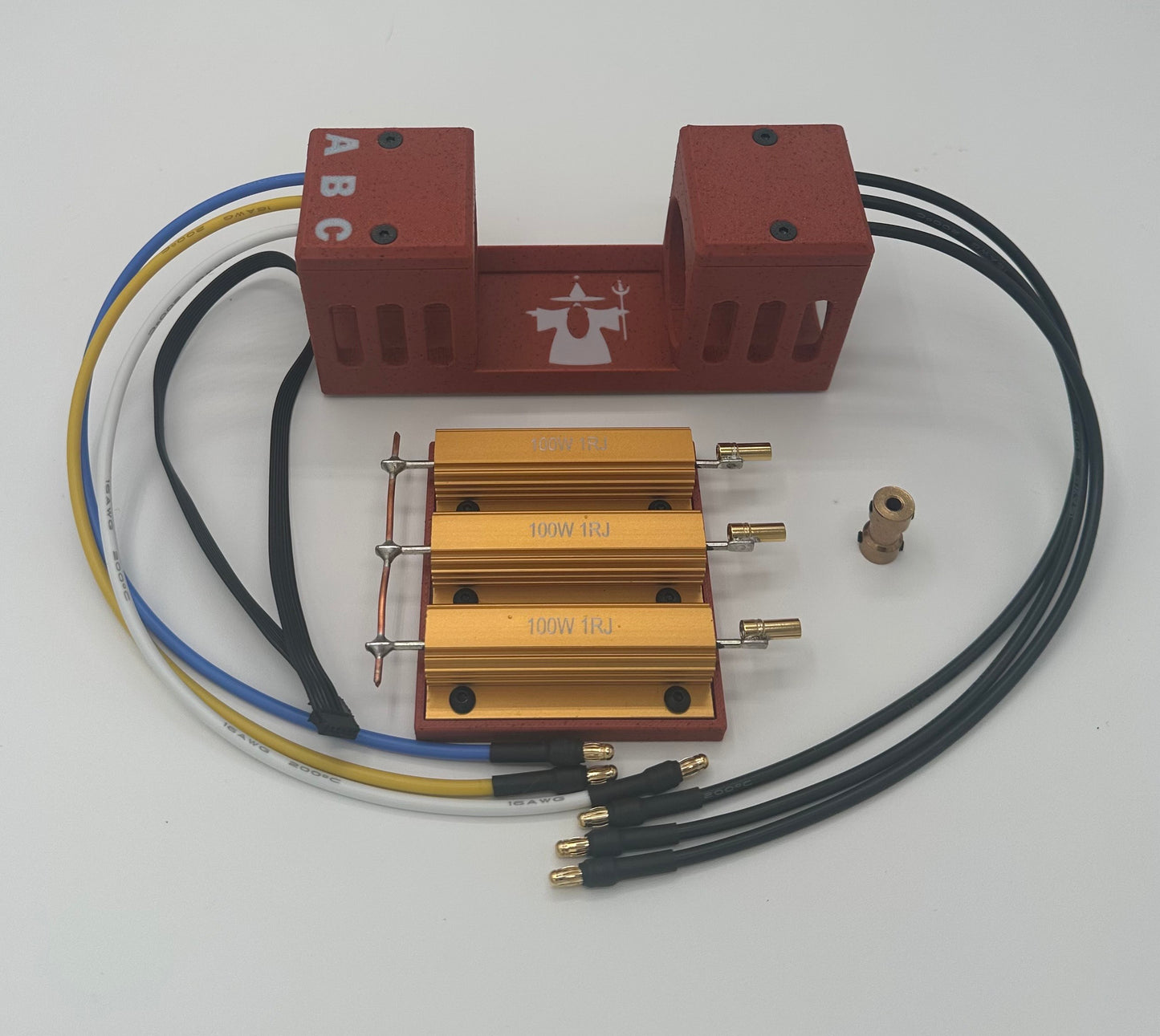

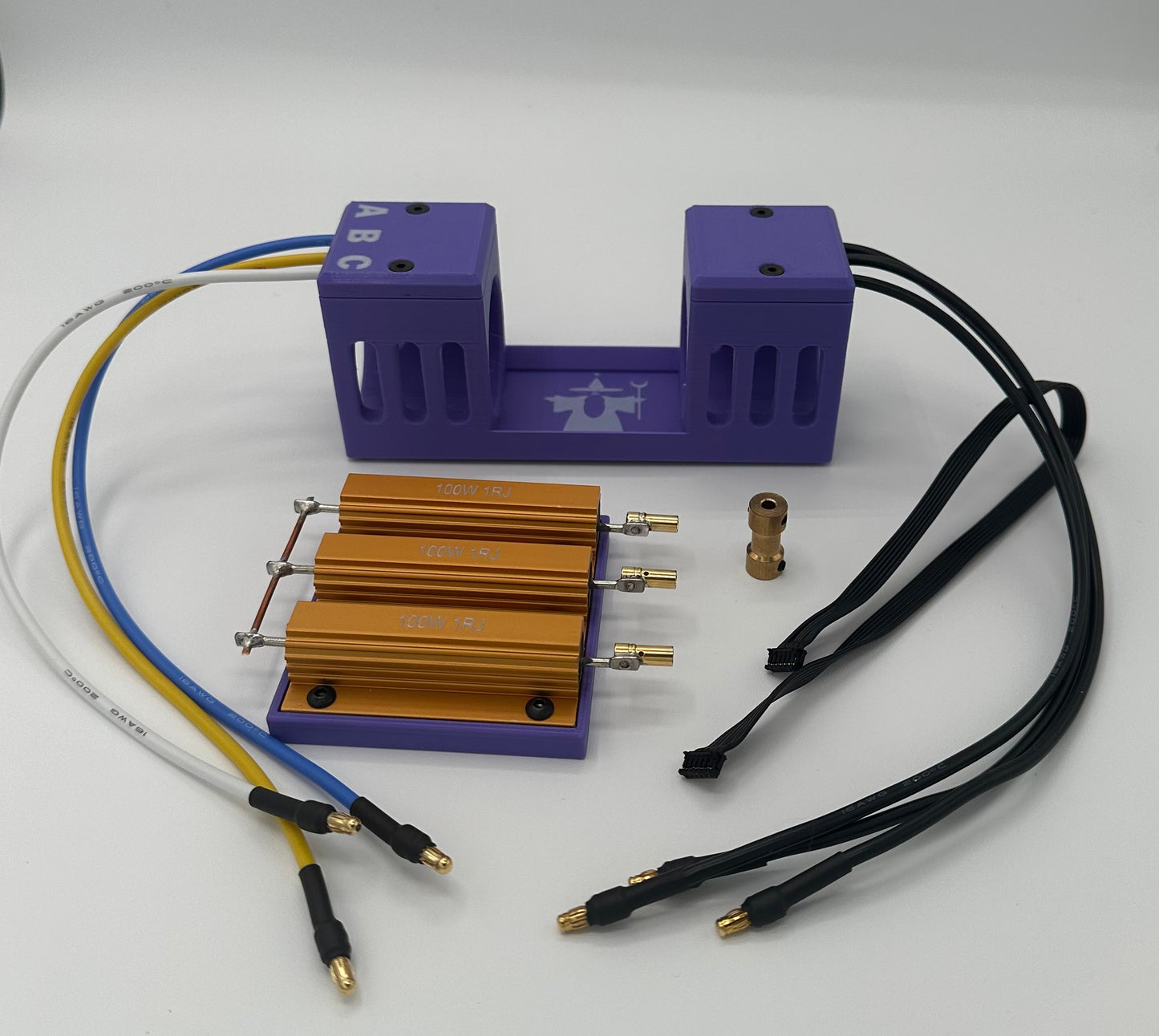

Includes:

1, dual motor stand

1, coupler (to attach the test motor to the slave motor)

1, 3 input resistor bank (to simulate a load)

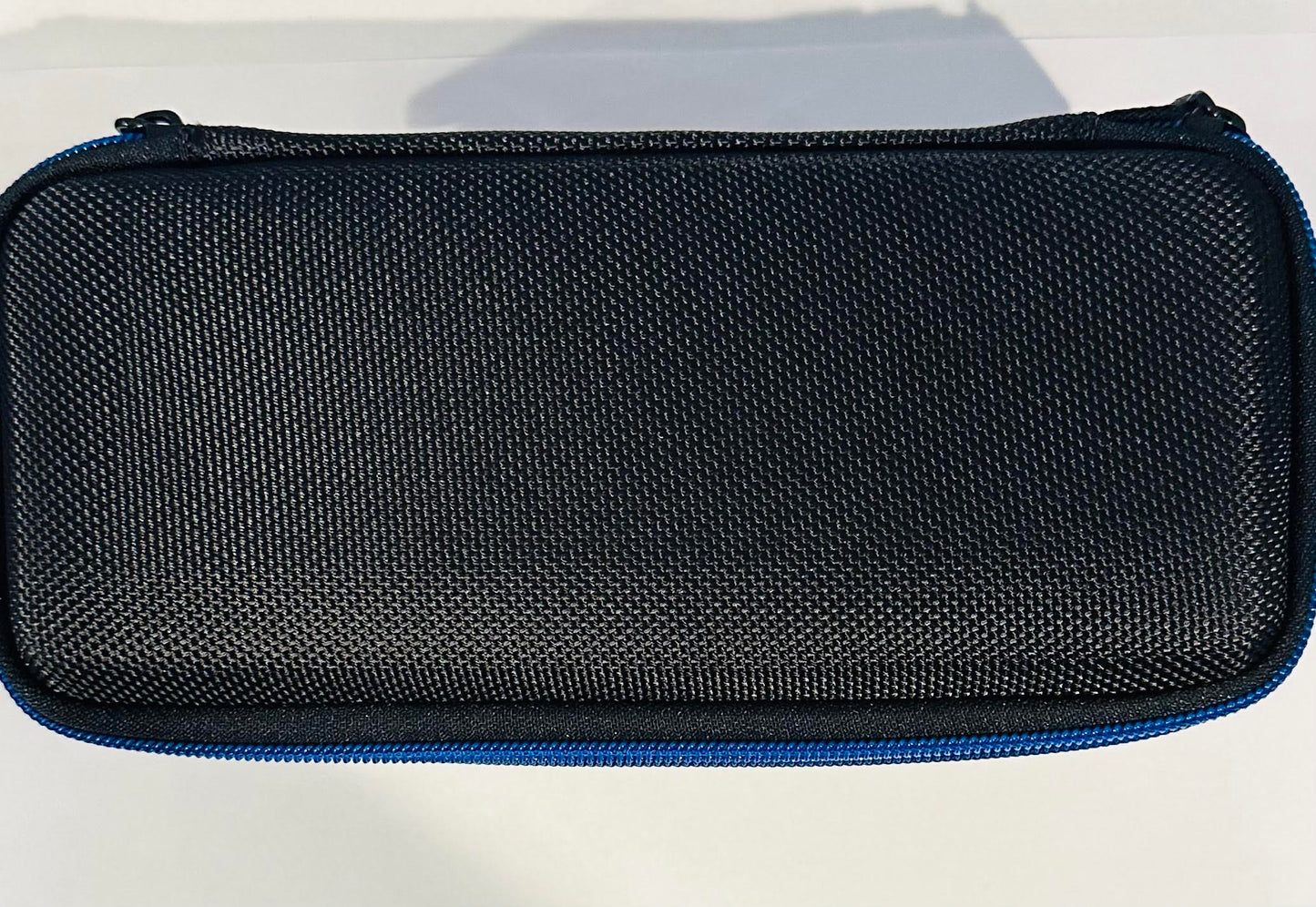

1, Protective zip case

1, 275mm sensor wire

Needed to use:

Motor analyzer

Test motor

Slave motor

Power source

This is a custom made product and the lead time could be up to 5 days.

Thanks for your understanding
