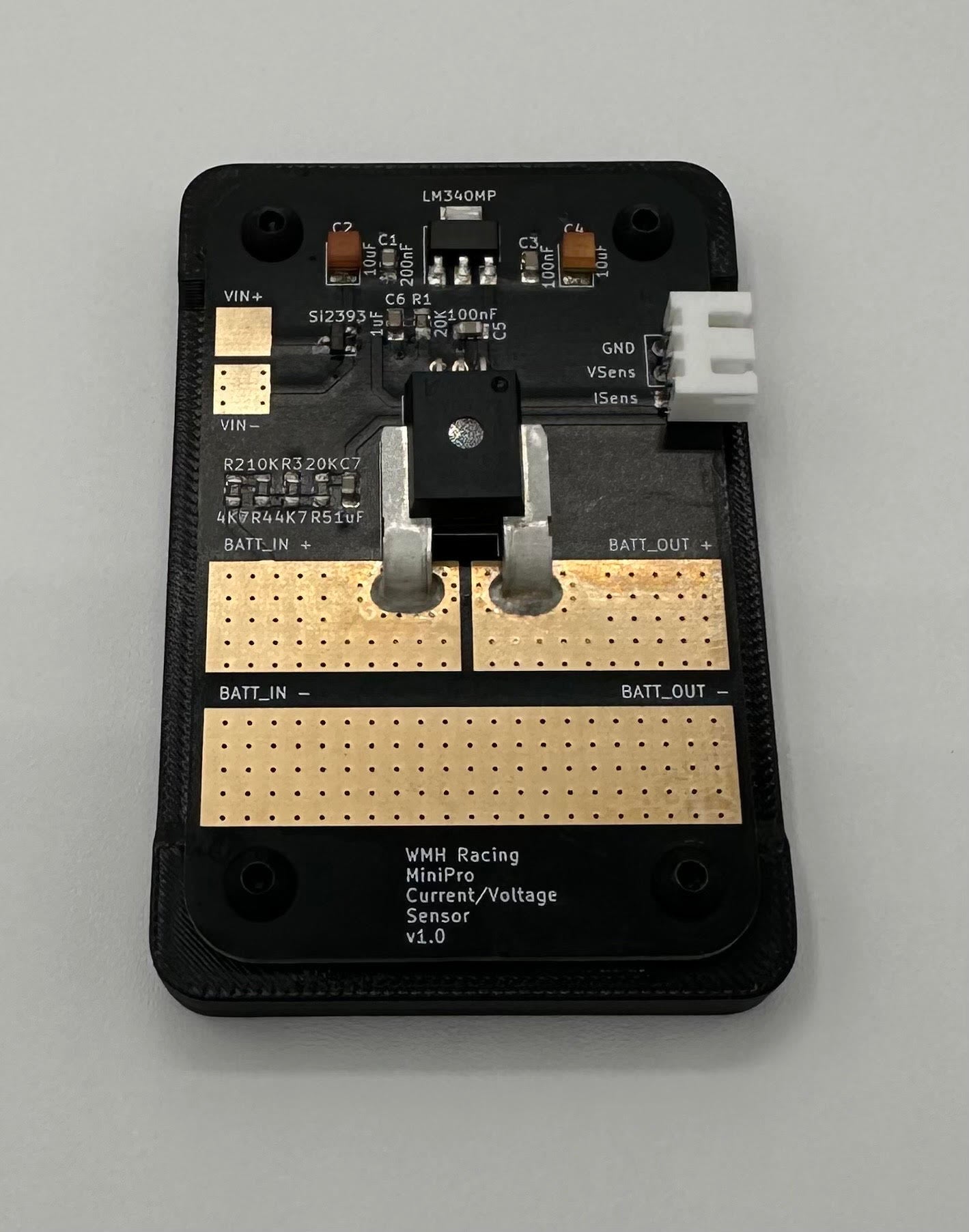

MiniPro Voltage/Current Sensor

This is a redesign of the MiniPro 200A Current/Voltage sensor.  This sensor runs off a separate power supply than the power source you are using for the MiniPro.  Operates off of 7.5-15VDC, you will need to supply your own power leads.  Solder the positive lead to the VIN+ and the ground to the VIN-.  Run the sensor in series with your power source for your motor to get the current and voltage information.  Calibration of the sensor is done in the MiniPro PC application, connects to the MiniPro sensor board with the same 3 pin connector that the MiniPro sensor uses.

The main difference in the sensor is that this uses an external power source for more accurate readings under load.

Also comes with a 3d printed base.

Input voltage for the sensor - 7.5V-15V

Current rating - 200A

Reverse polarity protection on the input power rail.

PCB and components are RoHS Compliant
