Resistor Bank

Resistor banks to be used with the Load Master.  Lower Ω resistor banks put more load on the motor under test and conversely, higher Ω resistor banks put less load on the motor under test.

The standard value that comes with the 540 Load Master is a 1Ω bank and a 2Ω for the 550 Load Master, sometimes this is too much load for high torque motors when used with the Hobbywing Tunalyzer.  Using a higher Ω resistor bank will help with the motor stalling issues the Tunalyzer can have.

The following values are now available to help fine tune the load.

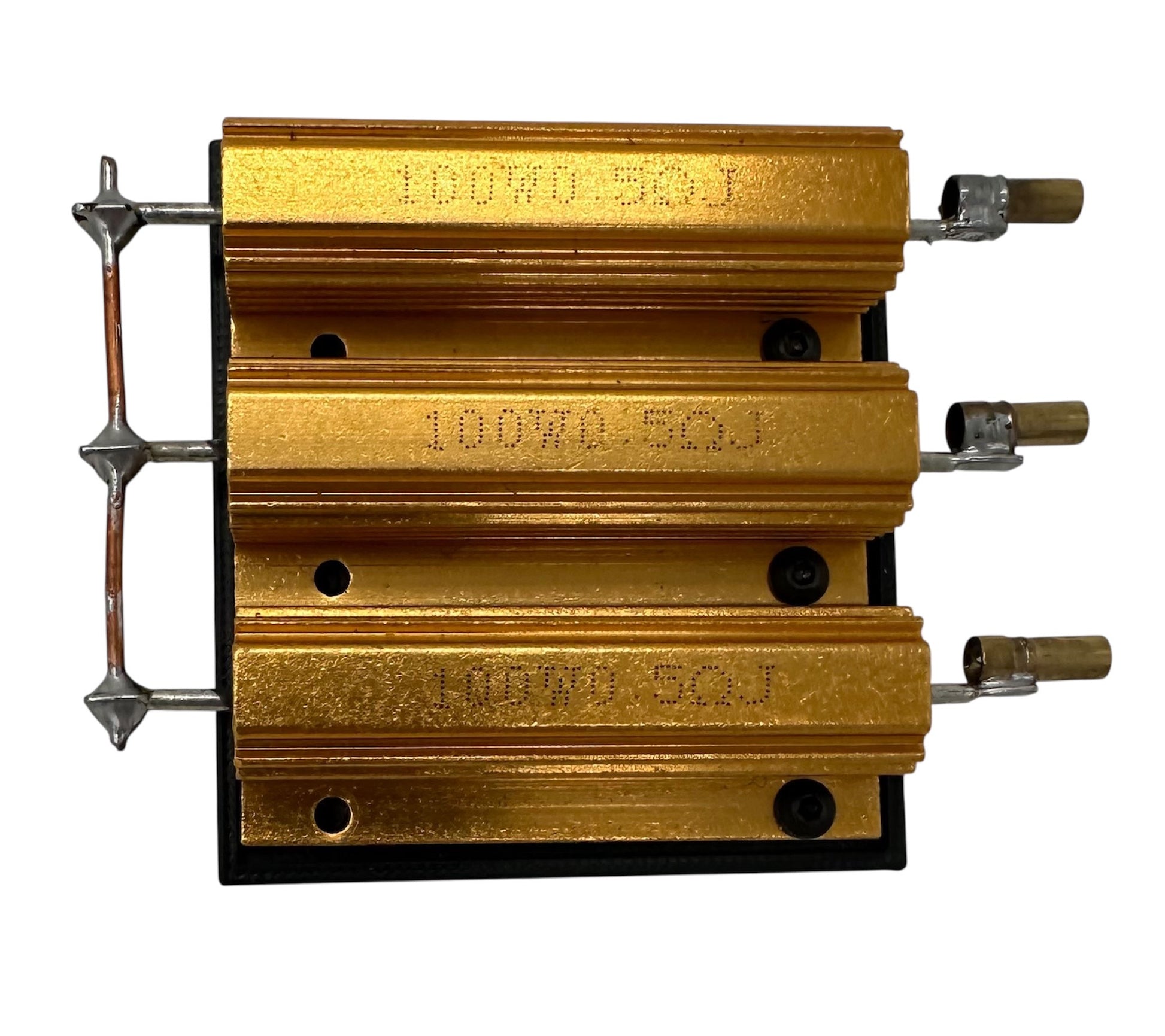

0.5Ω

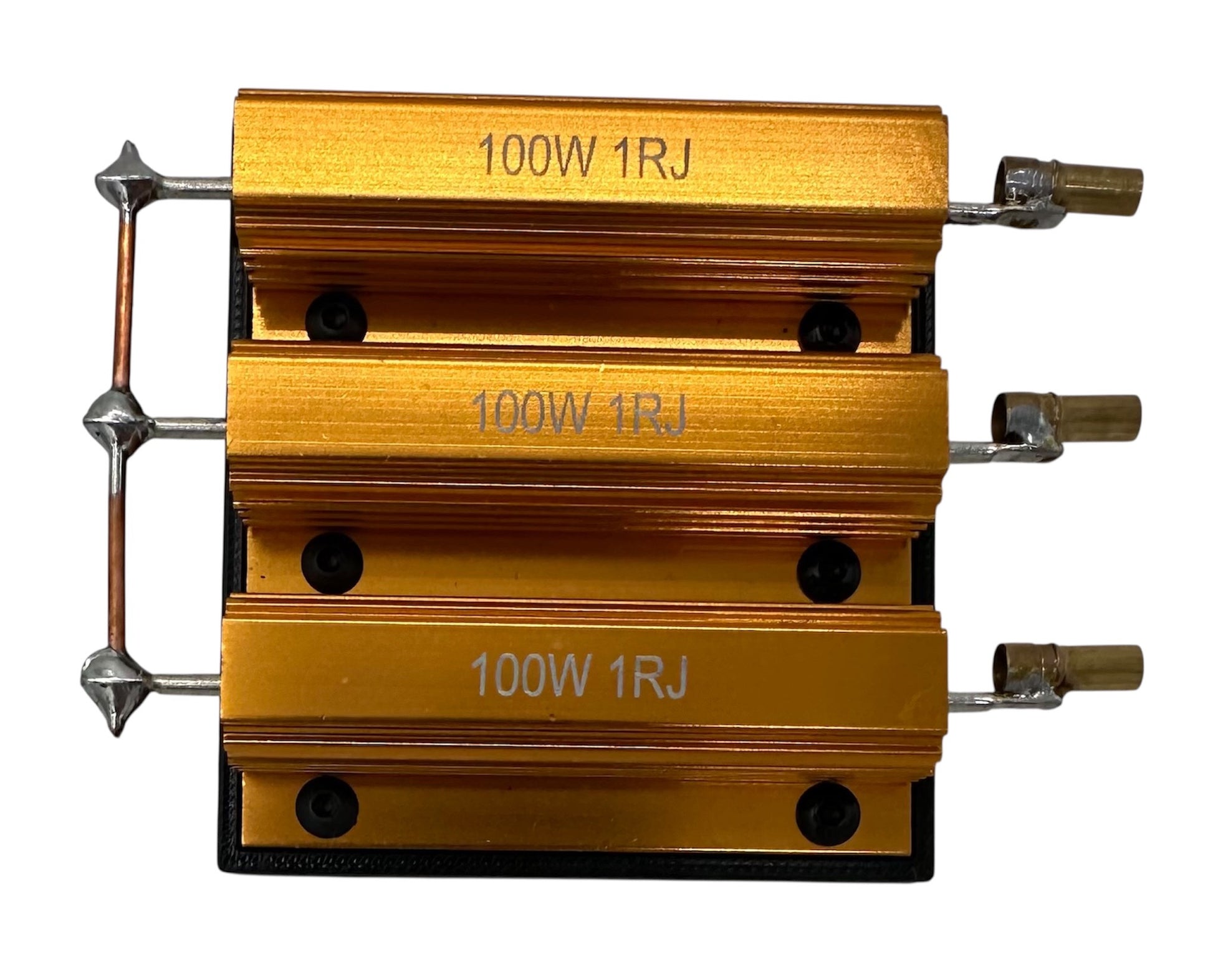

1Ω

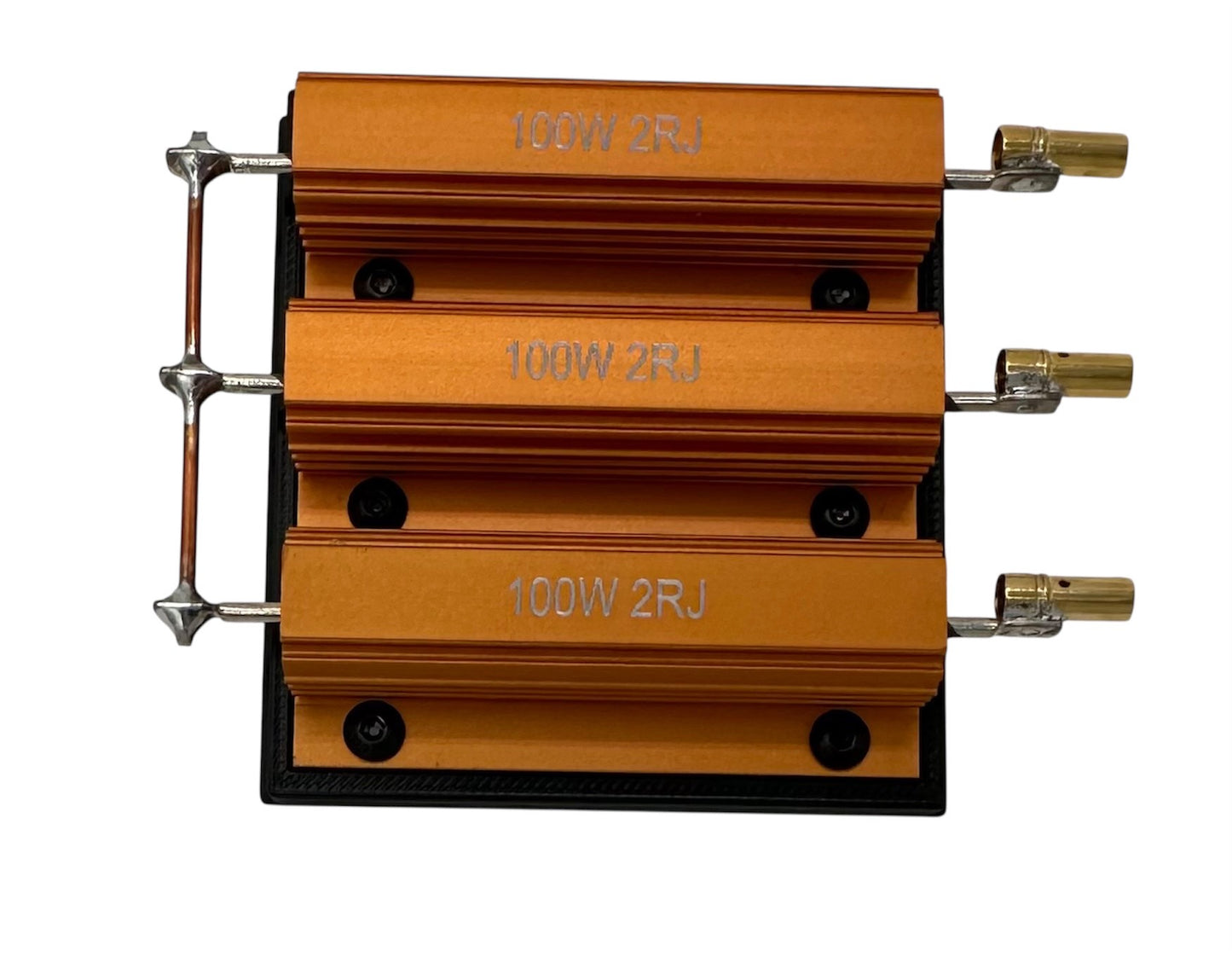

2Ω

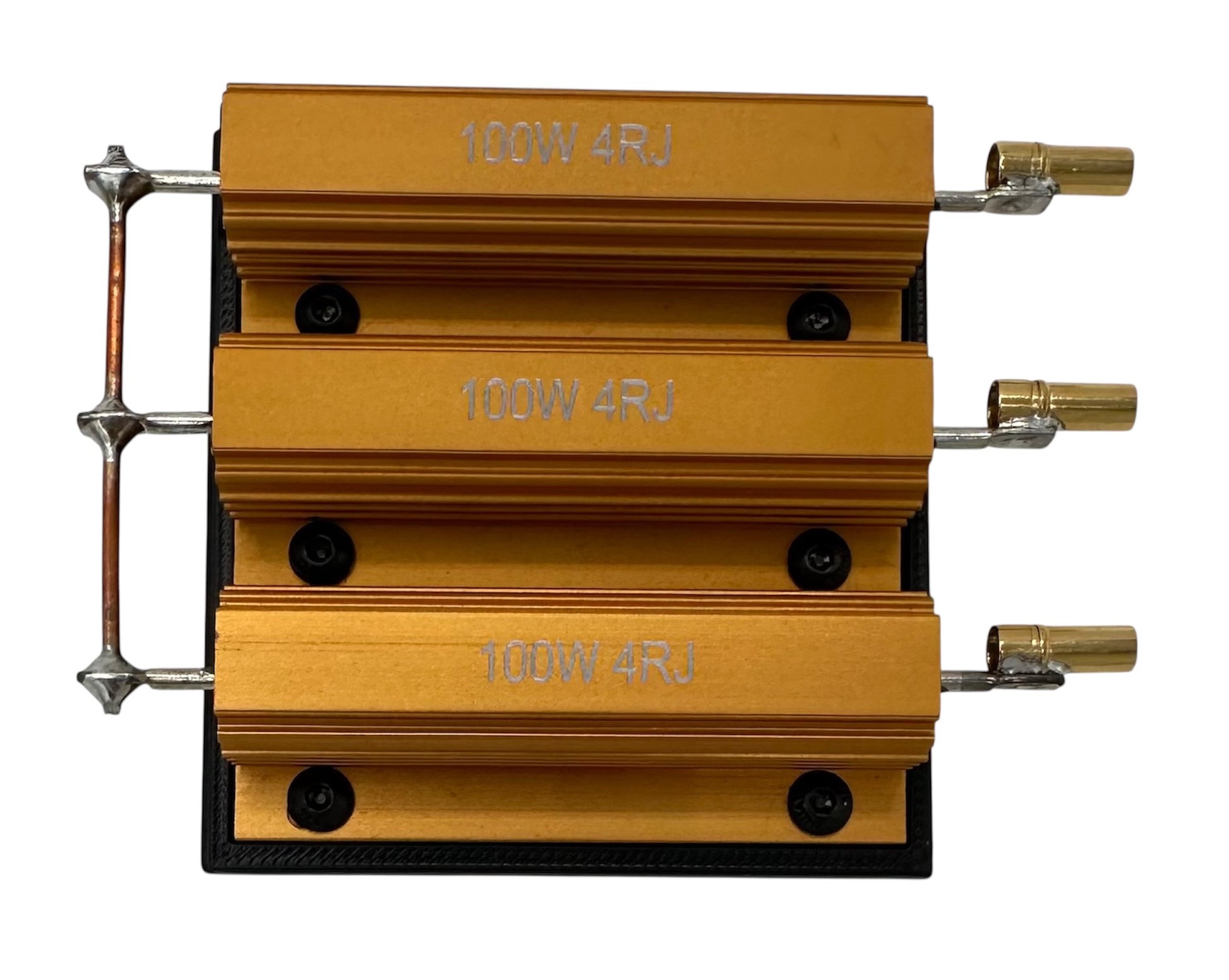

4Ω

This is for 1 resistor bank of your choice and color.
